BreatherQuilt – The TLX Gold Alternative
BreatherQuilt – The TLX Gold Alternative
Key Features
- BDA Certified, approved by NHBC & LABC for Building Control
- 2 in 1 built in Breathable and Insulating Multifoil
- Highly Reflective True Aluminium Outer Layer

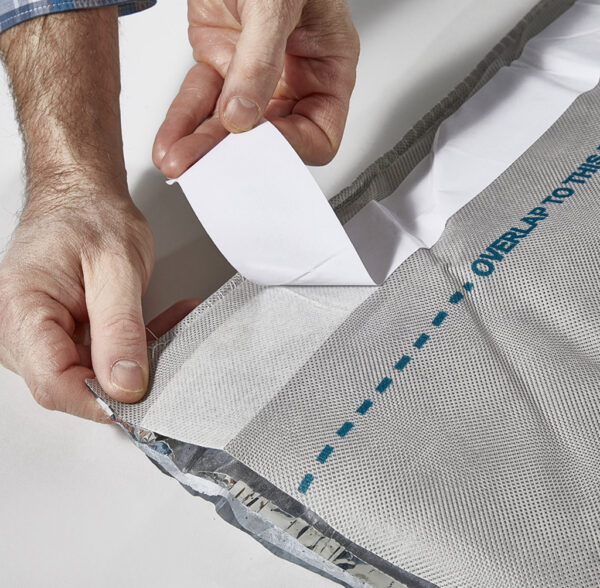

- Includes Built-in Double Sided Tape
- Flexible, Thin and Easy to Install
- Can meet Building Regulations without use of PIR
- Save up to 10% in Space and 30% in Cost
- UK Manufactured
- Wind and Waterproof
High-Performing Roofing Membrane
BreatherQuilt – The TLX Gold Alternative; Multifoil Insulation have now replaced TLX Gold with a new, fully agrémont certificated product, YBS BreatherQuilt.
BreatherQuilt is not only lower in cost, importantly it provides a better R Value than TLX Gold and is accepted by ALL Local Council Building Control – BreatherQuilt is fully approved by LABC.
The fully BDA certified BreatherQuilt is 2-in-1 Insulating Breather Membrane. BreatherQuilt improves the thermal value of your roof without a risk of condensation and with little or no change to the roof height.
BreatherQuilt has been designed for today’s roofer. Whether you are carrying out a roof refurbishment or new build project, BreatherQuilt improves thermal performance and eliminates the risk of condensation, it vents moisture like a breather membrane and yet insulates like non-breathable PIR board. With BreatherQuilt there is no condensation risk – even without a vapour barrier.

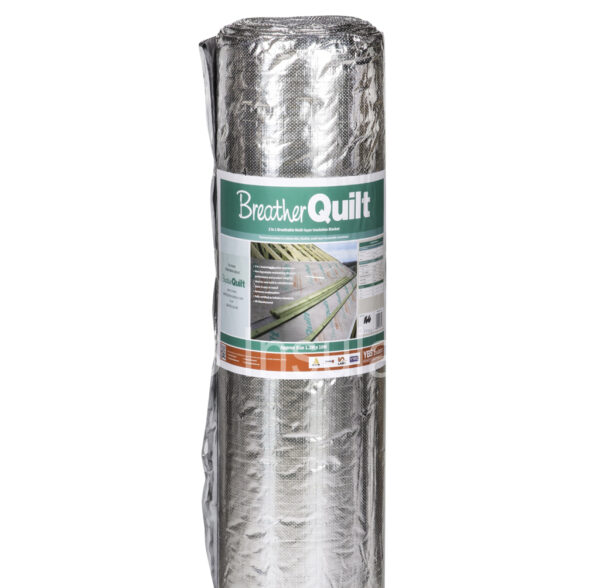

TLX Gold and BreatherQuilt are supplied in the same size Rolls 1.2m x 10m providing 12m² per roll.
We guarantee the lowest trade price on single rolls of BreatherQuilt. You can also order a Trade pallet of 15 rolls of BreatherQuilt at our lowest Trade price of only £7.08 per square metre – that’s around a 31% saving on TLX Gold!
To order our BreatherQuilt Trade pallet Click Here
To see how BreatherQuilt The TLX Gold Alternative can be used in your Project and achieve a U-Value for Building Control Click Here!
See our Downloadable Fitting and Data Sheets below or if you have any further queries please use our Enquiry Form
Free Next Working Day Delivery to the UK Mainland on all orders over £100+Vat when ordered before 2pm!

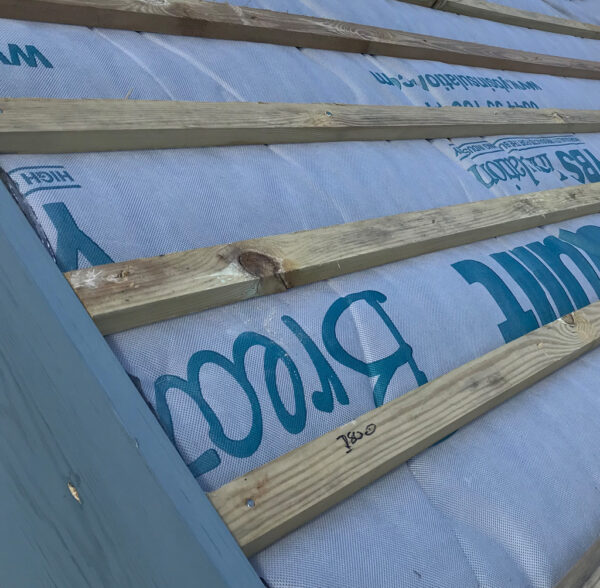

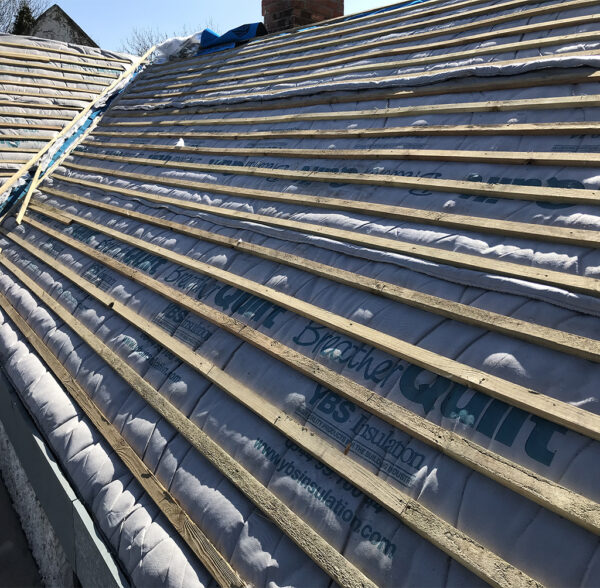

How to Fit BreatherQuilt over Rafter
| Width | 1.2m |
| Length | 10m |
| Thickness | 40mm (7mm Compressed) |
| Roll Coverage | 12m² |
| Layers | 11 |
| Weight | 8KG |
| Core R-value | 1.17m²K/W |
| Roof R-value | 1.62m²K/W |
| Foil Emissivity | 0.05 |
| Water Vapour Resistance | 0.15MNs/g |
What does BreatherQuilt consist of?

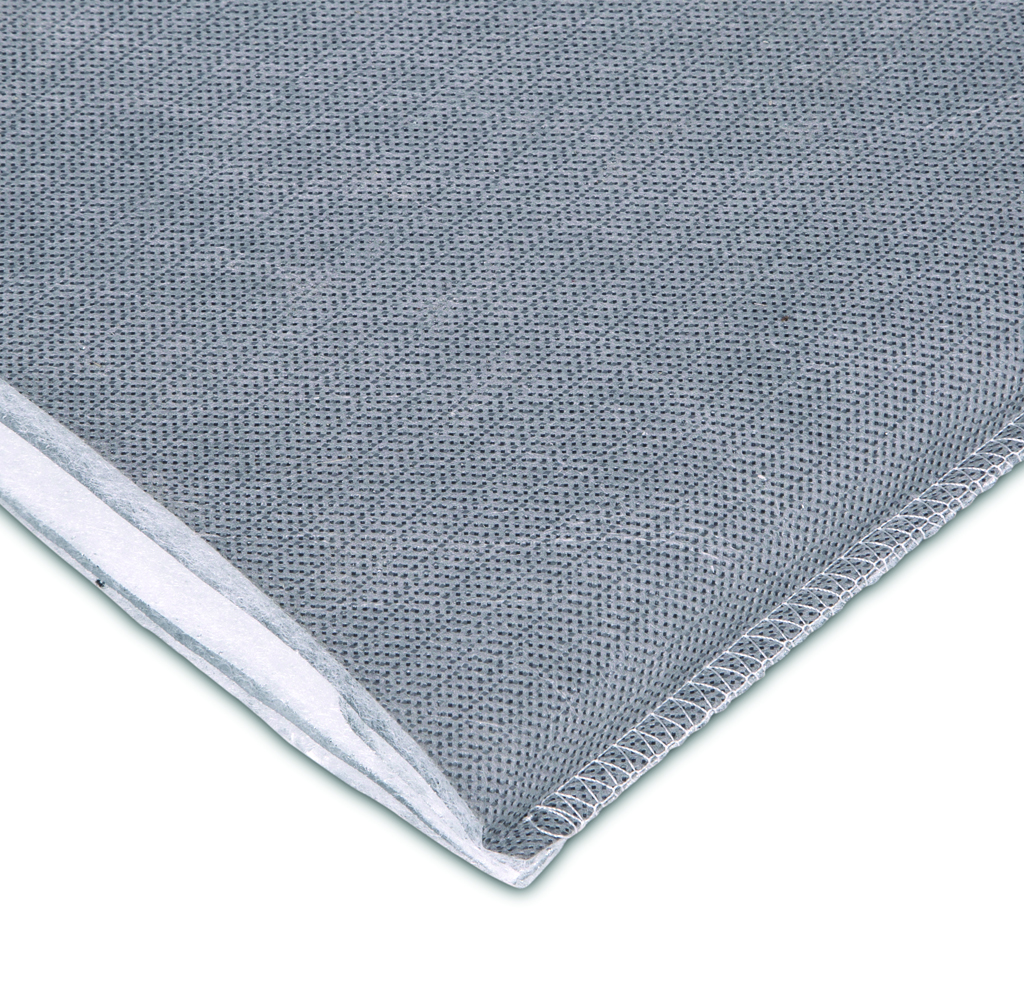

BreatherQuilt consists of 11 itch-free layers including True Aluminium Foils as the Inner layer. BreatherQuilt’s external layer is a high tensile breathable felt. The other 9 layers consists of recycled waddings, PE Foams, and other reflective foils.
Is BreatherQuilt harmful?
BreatherQuilt contains no harmful fibres and does not release any toxic gasses when cut or installed. When installing BreatherQuilt, there is no requirement for any masks, PPE or gloves.
What thickness is BreatherQuilt?
BreatherQuilt is available in just one thickness, which is 40mm at a relaxed thickness and will compress down to 7mm.
Do BreatherQuilt require airgaps?
To gain the best thermal performance, we recommend a minimum cavity/batten of 25mm both sides of the insulation. This is to allow the product to expand and reflect. If a cavity is removed, the performance would reduce by approx 20%.
Is BreatherQuilt fireproof?
BreatherQuilt has a Class E Euro Fire Classification Certificate. BreatherQuilt is not fully fire-proof, however the true aluminium inner layer are flame proof, meaning if a naked flame touches the product, it will smoulder as opposed to spreading.
What’s the difference between BreatherQuilt and SuperFoil SF19BB?
BreatherQuilt and SF19BB are both breathable multifoils for over rafter use. BreatherQuilt is UK manufactured and is fully certificated by both LABC and BDA. BreatherQuilt also has a true aluminium foil as the internal layer, compared to a met-pet foil layer.
