EcoQuilt45 – Reflective Multifoil Insulation
EcoQuilt45 – Reflective Multifoil Insulation
Key Features
- Size: 1.5 x 10m
- Reduces your Energy Bills
- FREE Nationwide Delivery
- No Expert / PPE Required
- Eliminates Condensation
- Proven to save Space and Cost vs PIR
- Just 15mm Thick when Installed
- Manufactured in the UK
- Flexible, Thin & Easy to Install
- Equivalent to 70mm PIR
- Manufactured using 83% Recycled Materials
- Roof R-value – 2.19m²K/W
- Wall R-value – 2.63m²K/W
- Floor R-value – 5.56m²K/W
EcoQuilt45 – Reflective Multifoil Insulation

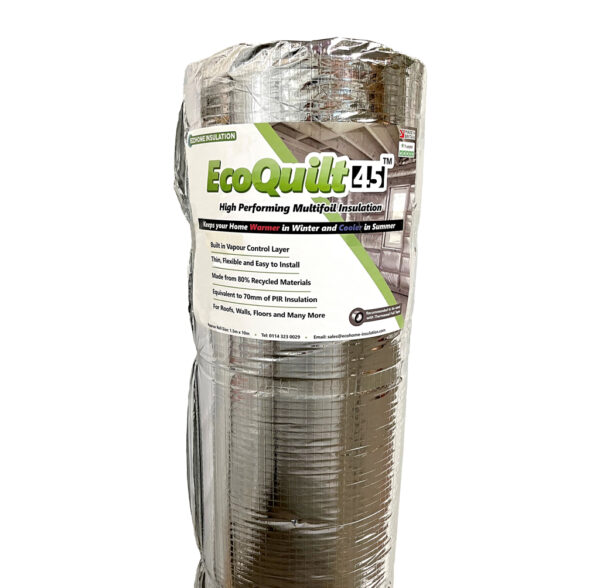

EcoQuilt45 is made of 11 layers of Highly Reflective Multifoil Insulation
It is 1.5m x 10m – This provides 15m2 worth of coverage
What is EcoQuilt45?
EcoQuilt45 is an advanced version of our EcoQuilt Expert which is certainly the most popular product within our Multifoil Insulation Range. This product has been developed to make your home even more energy efficient.
EcoQuilt45 is 45mm thick however it compresses to just 7mm when installed. It is a highly reflective multifoil insulation that will certainly retain your heat energy more efficiently. It will act as a barrier between the inside of your home and the cold external temperature fluctuations. During the winter it will prevent cold air from getting in and excessive warm air from entering during the summer. Performance-wise, this equates to 70mm of PIR. This means this product will have your money and space compared to using PIR.
To create a high-performing vapor control layer you can seal and tape with our Thermaseal Foil Joining Tape.
Applications for EcoQuilt45:
EcoQuilt is a very versatile product that can be used to insulate many areas, including;
- Timber Frame Walls
- Floors – Concrete and Timber Floors
- Walls – Solid and Cavity Walls
- Roofs – Pitched Under Rafter / Loft floors
- Conservatories
- Garden Buildings
- Summer House
- Caravans
- Containers
How Does EcoQuilt45 Compare to SF19+?
We believe SF19+ is a product imported from China however this product has recently lost its BBA certificate. EcoQuilt45 is UK manufactured and has been tested and compared to SF19+. Thermally EcoQuilt45 out performs SF19+ showing a R-Value of 1.29. To our understanding, SF19+ has claims its R-Value is 1.63 although during testing it was revealed that it’s R-Value is 1.27.
We offer a FREE Nationwide Delivery on EcoQuilt45, to the UK Mainland!
Order before 2pm Monday – Friday, and receive free next working day delivery (UK Mainland)
Orders placed after 2pm Friday, or over the weekend, are delivered Tuesday. (UK Mainland)
| Length | 10m |
| Width | 1.5m |
| Thickness | 45mm |
| Coverage | 15m² |
| Layers | 11 |
| Weight | 8.8KG |
| Core R-value | 1.29m²K/W |
| Roof R-value | 2.19m²K/W |
| Wall R-value | 2.63m²K/W |
| Floor R-value | up to 5.56m²K/W |
| Foil Emissivity | 0.05 |
| Water Vapour Resistance | 1569MNs/g |
Do I need to use battens with this product?
To gain the best thermal benefits, it is essential to have air-gaps both sides of the insulation. This allows EcoQuilt45 to expand and reflect on both sides. These cavities can be created by battens, or existing timbers e.g. Rafters or Studwork.
Can I use this product to insulate my loft?
Yes, EcoQuilt45 is suitable for insulating either the sloping rafters, or loft floor level.
Do I need to use a foiled-back plasterboard?
When EcoQuilt45 is the most internal insulation layer, it will work as a high-performance Vapour Control Layer, reducing condensation. If this method is followed, there is no requirement for a Foiled-backed plasterboard.
How much heat would you save?
This would vary on the application; however a good benchmark is 1 layer of EcoQuilt45 would equate to approx 140mm Mineral Wool.
Is EcoQuilt45 waterproof?
When EcoQuilt45 is taped and sealed, it does not allow any moisture to pass through.
Can you recycle EcoQuilt45?
Whilst EcoQuilt45 is not available for recycling, it is made of approx 75% recycled materials. EcoQuilt45 also will not shrink or degrade over time, and will last the lifetime of the application!
What’s the best method to cut EcoQuilt45?
We recommend cutting EcoQuilt45 either with Multifoil Scissors or a cutting knife. Both are found in our Multifoil Insulation Fitting Kit.
Is EcoQuilt45 suitable for Conservatories?
Yes, EcoQuilt45 is a very multi-purpose product and is extremely popular for Conservatories. It is also used in lofts, walls, floors, sheds, garages, caravans, sheds and many more!
Are there discounts available on EcoQuilt45?
When 12 roll quantities are ordered, there is a saving on EcoQuilt45. This can be found in our Trade Pallet Deals.
